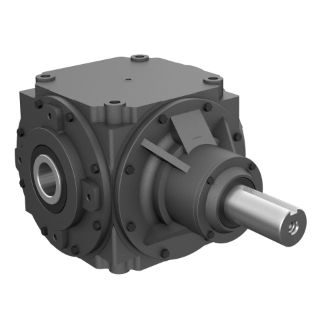

Actual Product May Vary From Image

1250 3/1 STD SP HUB

Name: 1250 3/1 STD SP HUB
SKU: 1250 3/1 STD SP HUB
Availability: OutOfStock

Hub City® 0220-20508 1250 Right Angle Spiral Single Reduction Style A B Bevel Gear Reducer, Shaft Input, Hollow Bore Output, 118 hp, 3:1 Gear, 583.3 rpm Maximum Output, 12749 in-lb Torque Rating

Manufacturer part number: 0220-20508

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style A B

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style A B, Series: 1250, 3:1 Gear Ratio, 118 hp, Shaft Input, Hollow Bore Output, 2-1/2 in Dia x 5 in L Input, 2.438 in Dia Output, 583.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 12749 in-lb, 16-7/8 in Centre Distance, 5/8 x 5/16 in Input/Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Ductile Iron, 15 in W x 23-1/4 in D x 12-3/8 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged ductile iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	16-7/8 in
Country of Origin:	US
Dimensions:	15 in W x 23-1/4 in D x 12-3/8 in H
Efficiency:	97.5 %
Gear Ratio:	3:1
Horsepower:	118 hp
Input Maximum Speed:	1750 rpm
Input Size:	2-1/2 in Dia x 5 in L
Input Type:	Shaft
Keyway Size:	5/8 x 5/16 in Input/Output
Lubrication Type:	Conventional Oil
Material:	Ductile Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	583.3 rpm
Output Size:	2.438 in Dia
Output Type:	Hollow Bore
Series:	1250
Torque Rating:	12749 in-lb
