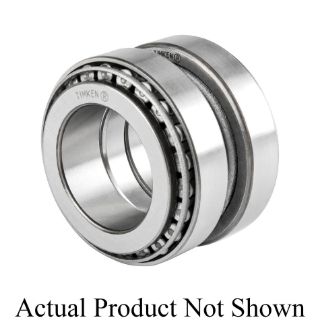

Picture of 12580-90026 TKN
Actual Product May Vary From Image

12580-90026 TKN

Tapered Roller Bearing Two Single Row Assembly
Manufacturer: Timken
Manufacturer part number: 12580-90026
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$323.01

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.
TRB Two-Single-Row Assembly | Imperial | 20.6 mm 0.8 in Bore | 49.2 mm 1.9 in OD | 39.7 mm 1.6 in Width

Features

  • Widest choice including both inch and metric sizes
  • Engineered to deliver higher speeds, heavier loads and longer life
  • Unrivaled technology and engineering support
  • Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:Assembly
Assembly Number:90026
Bearing Material:Steel
Bearing Type:Unmounted Tapered Roller Bearing
Bore Type:Straight Bore
Cage (Retainer) Type:Steel
Cage Material:Steel
Component (I/R; O/R assembly):Assembly
Dynamic Load Rating:17100
Load Rating UOM:LB
Material - Rolling Elements:Steel
Outer Diameter (in):1.938
Outer Diameter (mm):49.2252
Outer Diameter Type:Straight OD
Outer Race Width (in):1.5626
Outer Race Width (mm):39.69004
Overall Width (in):1.5626
Overall Width (mm):39.69004
Precision class:Class 2 (Standard)
Raceway Style:Tapered Roller Bearing
Rolling Element:Tapered Roller
Row Type:Single
Shaft Size (in):0.8125
Shaft Size (mm):20.6375
Static Load Rating:19440
