128010.00 LEE

Name: 128010.00 LEE
Brand: Leeson Electric
SKU: 128010.00 LEE
Price: 2,961.08 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

128010.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,961.08 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Alternate Supplier #

Grainger - 48ZG69

Description

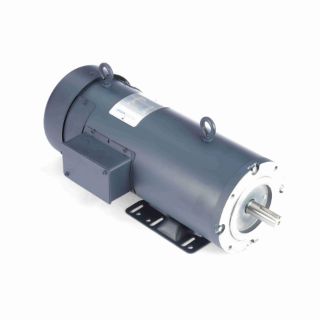

LEESON® DC Motor, 4-Pole Continuous Duty, 1.49 kW Power, 180 VDC, 9.5 A, 1750 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, K145TC Frame, 0.88 in Dia x 2.13 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 72 in-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class H, 19.34 in L x 8.77 in H Dimensions

Application

Pumps, Conveyors, Turntables, Textile Machinery, Treadmills, Reeling Equipment, Sports Equipment and Medical Equipment

Standards

CSA Certified | UL Listed

Features

Brush holder design provides easy access to brushes
Large oversized brushes assure long brush life
Capable of dynamic braking
PWM or SCR type controller rated
High starting torque
Permanently lubricated sealed ball bearings
Higher hp and speed achievable using PWM type DC controls
Dynamically balanced armatures
30:1 constant torque operation

Specifications

Amperage Rating:	9.5 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	19.34 in L x 8.77 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	K145TC
Insulation Class:	Class H
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Power Rating:	1.49 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.88 in Dia x 2.13 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	72 in-lb
Voltage Rating:	180 VDC
