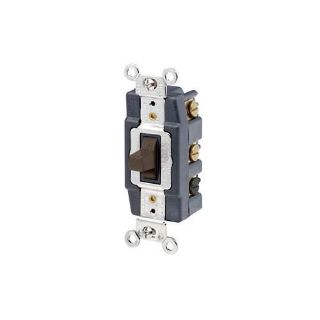

Picture of 1286 LEV
Actual Product May Vary From Image

1286 LEV

Leviton® 1286 AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power Rating, SPDT Contact
Manufacturer: Leviton Manufacturing
Manufacturer part number: 1286
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$180.20

Product Details

Brand Name

Leviton®

Type

Extra Heavy Duty

Alternate Supplier #

Grainger - 2WEP7

Description

Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top of the line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Leviton® AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power, SPDT Contact Configuration, 2 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.37 in W x 2.29 in D Dimensions

Application

Commercial Applications

Standards

ANSI C-73 | CSA C22.2 No. 111 File No. 152105 | NOM 057 | UL Fed Spec WS896E File No. E7458 | UL 20 | UL94-V2 Flammability Rated

Features

  • Positive switching action with center OFF position
  • Large silver cadmium oxide contacts for long life prevent sticking, welding and excessive pitting
  • Clamp type terminals accept up to 10 AWG copper wire
  • Full rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating
  • 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating

Specifications

Actuator:Toggle
Amperage Rating:20 A
Color:Brown
Contact Configuration:SPDT
Contact Rating:1 hp at 120 VAC, 2 hp at 240 VAC
Country of Origin:MX
Dimensions:4.06 in H x 1.37 in W x 2.29 in D
Enclosure:NEMA WD-1/WD-6
Environmental Conditions:-40 to 65 deg C Operating Temperature
Material:Thermoplastic
Mounting:Surface
Number of Poles:1
Operating Cycles:50000 Cycles
Power Rating:800 W, 1000 VA
Terminal Type:Back/Side Wire
Voltage Rating:120/277 VAC
