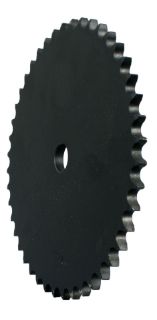

Actual Product May Vary From Image

12A42 MSG

Name: 12A42 MSG
Brand: Martin Sprocket & Gear
SKU: 12A42 MSG
Price: 111.03 USD
Availability: OutOfStock

Martin 12A42 Type A Single Strand Solid Stock Bore Roller Chain Sprocket, 24 mm Dia Bore, 266.665 mm OD, #12B-1 Chain, 42 Teeth, 19.05 mm Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 12A42

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$111.03

Qty:

Product Details

Brand Name

Martin

Type

Type A Single Strand Solid Stock Bore

Description

Metric A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Roller Chain Sprocket, Type A Single Strand Solid Stock Bore, 24 mm Bore, 266.665 mm OD, #12B-1 Chain, 42 Teeth, 19.05 mm Pitch, 254.917 mm Pitch Diameter, 40 mm Length Through Bore, Steel

Standards

Features

Without hardened teeth

Specifications

Bore Diameter:	24 mm
Chain Size:	#12B-1
Country of Origin:	US
Length Through Bore:	40 mm
Material:	Steel
Number of Teeth:	42
Outside Diameter:	266.665 mm
Pitch:	19.05 mm
Pitch Diameter:	254.917 mm
