12B17 MSG

Name: 12B17 MSG
Brand: Martin Sprocket & Gear
SKU: 12B17 MSG
Price: 74.77 USD
Availability: OutOfStock

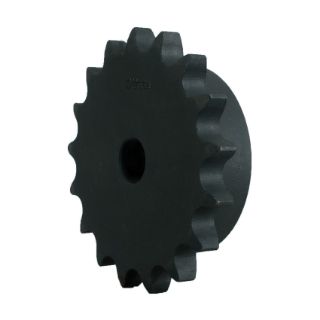

Martin 12B17 Type B Single Strand Solid Stock Bore Roller Chain Sprocket, 16 to 52 mm Dia Bore, 115.421 mm OD, #12B-1 Chain, 17 Teeth, 19.05 mm Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 12B17

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$74.77

Qty:

Product Details

Brand Name

Martin

Type

Type B Single Strand Solid Stock Bore

Description

Metric B style sprockets are flat sprockets with a hub extension on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and harden teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Single Strand Solid Stock Bore, 16 to 52 mm Bore, 115.421 mm OD, #12B-1 Chain, 17 Teeth, 19.05 mm Pitch, 103.674 mm Pitch Diameter, 80.01 mm Diameter Hub, 35 mm Length Through Bore, Steel

Standards

Features

Without hardened teeth

Specifications

Bore Diameter:	16 to 52 mm
Chain Size:	#12B-1
Country of Origin:	US
Hub Diameter:	80.01 mm
Length Through Bore:	35 mm
Material:	Steel
Number of Teeth:	17
Outside Diameter:	115.421 mm
Pitch:	19.05 mm
Pitch Diameter:	103.674 mm
