12H408-R MSG

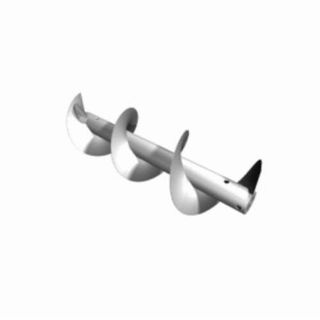

Martin 12H408-R Conveyor Screw With Helicoid Flighting, 12 in Dia x 142 in L, 12 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 12H408-R
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$646.52

Product Details

Brand Name

Martin

Description

The letter "H" indicates screw conveyor with helicoid flighting. The figures to the left of the letter indicate the nominal outside diameter of the conveyor in inches. The first figure following the letters is twice the diameter of the couplings in inches. The last two figures indicate the nominal thickness of flighting at the outer edge in 1/64 in. Right hand flight helix wraps around the pipe in a clockwise direction.
Martin Conveyor Screw, 12 in Dia, 142 in Length, Steel, 12 in Pitch, Right Hand Flight

Standards

CEMA Standard

Specifications

Country of Origin:US
Diameter:12 in
Flight Type:Right Hand
Length:142 in
Material:Steel
Pitch:12 in
