12SCHS SPCR HUB 2-1/4 1/2X1/4 LOV

Name: 12SCHS SPCR HUB 2-1/4 1/2X1/4 LOV
Brand: Lovejoy
SKU: 12SCHS SPCR HUB 2-1/4 1/2X1/4 LOV
Availability: OutOfStock

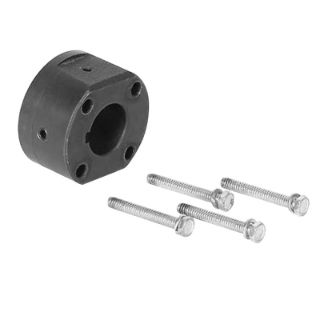

Lovejoy® S-Flex Endurance™ 68514436750 Type SCHS Finished Bore Spacer Coupling Hub, 12SCHS Coupling, 2-1/4 in Dia Bore, 2.53 in L Through Bore, 5-3/4 in Dia Hub, Cast Iron

Manufacturer: Lovejoy

Manufacturer part number: 68514436750

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Lovejoy®

Type

Type SCHS Finished Bore

Description

Lovejoy® S-Flex Endurance™ Spacer Coupling Hub, Type SCHS Finished Bore, 12SCHS Coupling, 2-1/4 in Bore, 5-3/4 in Diameter Hub, 1/2 x 1/4 in Keyway, 2800 rpm Maximum, 2.53 in Length Through Bore, 5/8-11 Screw, Cast Iron

Standards

Features

Specifically designed for the pump industry, this coupling accommodates industry standard as well as special pump/motor separation
This shaft separation facilitates easy pump repair of pump packing, bearings and seals without disturbing pump or motor mounting and alignment

Specifications

Bore Diameter:	2-1/4 in
Country of Origin:	US
Coupling Size:	12SCHS
Hub Diameter:	5-3/4 in
Keyway Size:	1/2 x 1/4 in
Length Through Bore:	2.53 in
Material:	Cast Iron
Maximum Speed:	2800 rpm
Screw Size:	5/8-11
