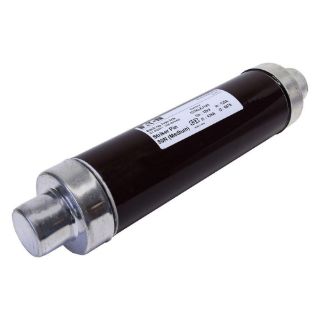

Actual Product May Vary From Image

12TKLEJ125 BSF

Name: 12TKLEJ125 BSF
Brand: Bussmann
SKU: 12TKLEJ125 BSF
Availability: OutOfStock

Bussmann 12TKLEJ125 TKLEJ Back-Up DIN Dimensioned Medium Voltage Type T Current Limiting IEC Fuse, 25 A, 12 kV, 63 kA Interrupt, Class: Back-Up, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 12TKLEJ125

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Back-Up DIN Dimensioned Medium Voltage Type T

Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Current Limiting IEC Fuse, Back-Up DIN Dimensioned Medium Voltage Type T, Series: TKLEJ, Indicating/Non-Indicating: Non-Indicating, 25 A, 12 kV, 63 kA Interrupt, Class: Back-Up, Body Type: Cartridge, Brown, 3 in Dia Body Size

Application

Primary Side Transformer Protection, Fuse Switch Combination Unit, Fuse Bases and Fuse Switches

Standards

IEC 60282-1 | DIN 43625 | VDE 0670 Part 4 | VDE 0670 part 402

Features

Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained

Specifications

Amperage Rating:	25 A
Body Size:	3 in Dia
Body Type:	Cartridge
Class:	Back-Up
Color:	Brown
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	63 kA
Series:	TKLEJ
Voltage Rating:	12 kV
