Actual Product May Vary From Image

130354 DOD

Name: 130354 DOD
Brand: Dodge
SKU: 130354 DOD
Price: 104.59 USD
Availability: OutOfStock

TB-SC-20M

Manufacturer: Dodge

Manufacturer part number: 130354

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$104.59

Qty:

Product Details

Ball Bearing Series:	204 Series
Base to Center Height:	1.3100
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.3750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	2.0000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	2.0000
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.2300
Bore Length (Unit):	INCH
Dynamic Load Capacity:	2899
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	Unirex N2
Housing Construction:	Solid
Housing Material:	Cast Iron
Housing Type:	Tapped-Base Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	5000
Maximum Speed (Unit):	RPM
Seal Type:	Single-Lip Contact
Sensor Ready:	Adapter Required
Shaft Attachment:	Setscrew
Shaft Diameter:	20.0000
Shaft Diameter (Unit):	MILLIMETER
Standoff Housing:	No
Static Load Capacity:	1482
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	No

Customers who bought this item also bought

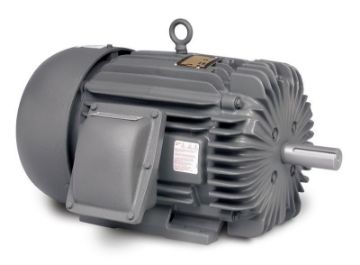

MFG#:EM7054T
