Actual Product May Vary From Image

1310 7/8 MSG

Name: 1310 7/8 MSG
Brand: Martin Sprocket & Gear
SKU: 1310 7/8 MSG
Price: 23.09 USD
Availability: OutOfStock

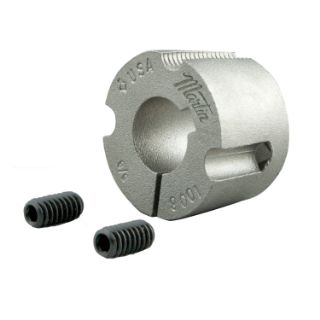

Martin 1310 7/8 Standard Taper Lock Bushing, 7/8 in Dia Bore, 2 in Dia Barrel, 1 in OAL, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 1310 7/8

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$23.09

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

Martin Taper Lock Bushing, Standard, 7/8 in Bore Dia, 2 in Barrel Dia, 3 in Hub Dia, 8 deg Taper, 1-7/8 in Bolt Circle, 2 Bolt Holes, 3/8-16 x 5/8 in Screw, 3850 in-lb, For Use With: Taper Bushed Parts, 1 in Overall Length, 3/16 x 3/32 in Keyway, Steel

Standards

ANSI B15.1

Features

Size 1310 bushing
Tolerances meet or exceed industry guidelines and standards
Precise machining and processes ensure consistent finish and high quality
Interchangeable with other manufacturer's taper bushings
TB Bushings are designed for flush mounting and do not have a flange

Includes

(1) IS-MTB-2 Instruction Sheet and (2) 24C40KSO Setscrews

Specifications

Barrel Diameter:	2 in
Bolt Circle Diameter:	1-7/8 in
Bore Diameter:	7/8 in
Country of Origin:	US
Hub Diameter:	3 in
Keyway Size:	3/16 x 3/32 in
Material:	Steel
Number of Bolt Holes:	2
Overall Length:	1 in
Screw Size:	3/8-16 x 5/8 in
Suitable For Use With:	Taper Bushed Parts
Taper:	8 deg
Torque Rating:	3850 in-lb
