131616.00 MAR

Name: 131616.00 MAR
Brand: Leeson Electric
SKU: 131616.00 MAR
Price: 930.30 USD
Availability: OutOfStock

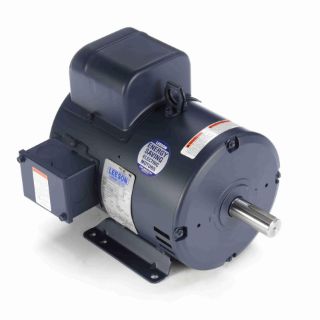

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

131616.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$930.30 / EA

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Application Type: General Purpose AC Motors, Special Features: Capacitor Start Motors, 5 hp, 208 to 230 VAC, 24 to 22 A, 60 Hz, 1 ph, 3500 rpm, 1 Speed, DP, MX184T Frame, 1.13 in Dia x 2.75 in L Shaft, Selective CCW, Service Factor: 1.15, Ball Bearing, 7.5 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 14.69 in L x 11.31 in H

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	24 to 22 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	14.69 in L x 11.31 in H
Enclosure Type:	DP
Frame:	MX184T
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	3500 rpm
Temperature Rating:	40 deg C
Torque Rating:	7.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230 VAC
