131DST-012-024R FSG

Federal Signal Starfire® 131DST-012-024R 131DST Warning Light, 12 to 24 VDC, Strobe Tube Lamp, Surface Mount, Red Lens
Manufacturer: Federal Signal
Manufacturer part number: 131DST-012-024R
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$818.37

Product Details

Brand Name

Federal Signal

Description

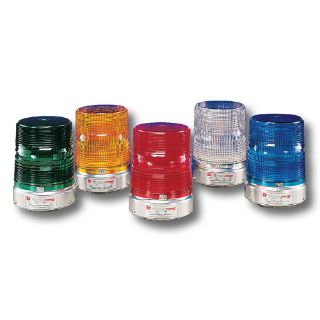

Federal Signal Starfire® strobe warning lights are available in single flash (131ST) and double flash (131DST) models. Through precise timing of the strobe flash, the double flash unit produces 1200 effective candela, the single flash unit produces 1000 effective candela. The base of the light is made of corrosion-resistant anodized aluminum. Each Starfire® model comes with a standard 1/2 in NPT pipe mount. An optional surface mount can be ordered. Because of its convenient size and intense light output, the Starfire® strobes can be used for multiple applications. Excellent for in-plant use, the models 131ST/DST warn of hazardous conditions, mark dangerous areas (either permanently or temporarily) and mount on lift trucks, cranes and other moving devices. These powerful strobes can be used on emergency, utility, maintenance or other vehicles requiring emergency warning.
Federal Signal Starfire® Warning Light, Series: 131DST, 12 to 24 VDC, 1.9/3 A, Cylindrical, Strobe Tube Lamp, Red Lens, Double Strobe Flash, 80 fpm Flash, 1000000 cd at Peak/1200 cd at ECP, 10000 hr Average Life, Surface Mount, NEMA 3R/IP54, -31 to 150 deg F, Aluminum/Polycarbonate Housing, 5.7 in W x 5.7 in D x 7.75 in H

Application

Commercial Trucking, Warn of Hazardous Condition, Mark Dangerous Areas (Either Permanently/Temporarily), Mount On Lift Trucks, Cranes, Other Moving Devices, Emergency, Utility, Maintenance/Other Vehicles Requiring Emergency Warning and Indoor/Outdoor Applications

Standards

BAA Compliant | CSA Certified | cUL Listed | UL Listed

Features

  • Three remotely selectable flash patterns
  • Corrosion resistant powder coat finish
  • Stainless steel external hardware
  • For use hazardous locations requiring ATEX approval

Specifications

Amperage Rating:1.9/3 A
Average Life:10000 hr
Country of Origin:US
Dimensions:5.7 in W x 5.7 in D x 7.75 in H
Flash Rate:80 fpm
Flash Type:Double Strobe
Housing Material:Aluminum/Polycarbonate
Lamp Type:Strobe Tube
Lens Color:Red
Light Output:1000000 cd at Peak/1200 cd at ECP
Mounting Type:Surface
NEMA Rating:NEMA 3R/IP54
Series:131DST
Shape:Cylindrical
Temperature Rating:-31 to 150 deg F
Voltage Rating:12 to 24 VDC
