132207.00 MAR

Name: 132207.00 MAR
Brand: Leeson Electric
SKU: 132207.00 MAR
Price: 2,870.00 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

132207.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,870.00 / EA

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Alternate Supplier #

Grainger - 48ZH94

Description

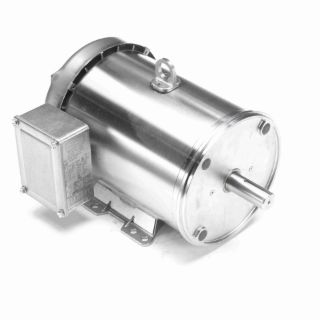

LEESON® Washguard® AC Motor, 2-Pole Continuous Duty, Washdown Duty Motors Special Features, 5 hp, 230/460 VAC, 12/6 A, 60 Hz Frequency, 3 ph, 3515 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 184TC Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 7.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 15.27 in L x 10.3 in H Dimensions

Application

Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

Washdown Duty Motors

Specifications

Amperage Rating:	12/6 A
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	15.27 in L x 10.3 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184TC
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	3515 rpm
Temperature Rating:	40 deg C
Torque Rating:	7.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
