132208.00 MAR

Name: 132208.00 MAR
Brand: Leeson Electric
SKU: 132208.00 MAR
Price: 2,970.64 USD
Availability: OutOfStock

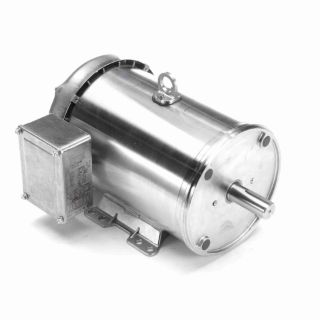

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

132208.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,970.64 / EA

Description

Brand Name

LEESON®

Type

Type AC Continuous Duty

Alternate Supplier #

Grainger - 48ZH95

Description

LEESON® AC Motor, Type AC Continuous Duty, C Face With Base, 89.5% Full Load Efficiency Special Features, 5 hp, 208 to 230/460 VAC, 12.6 A, 60 Hz Frequency, 1800 rpm Speed, 1 Speed, TENV Enclosure, 184TC Frame, 1-1/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Rigid Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 15.77 in L Dimensions

Application

For food processing and beverage industries, these motors are also ideal in clean room and severe chemical processing applications

Standards

CE Marked | CSA File No. LR2025 | UL File No. E49747

Features

C Face With Base, 89.5% Full Load Efficiency

Specifications

Amperage Rating:	12.6 A
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	15.77 in L
Enclosure Type:	TENV
Frame:	184TC
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	1-1/8 in Dia
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
