Actual Product May Vary From Image

132431.00 LEE

Name: 132431.00 LEE
Brand: Leeson Electric
SKU: 132431.00 LEE
Price: 919.32 USD
Availability: OutOfStock

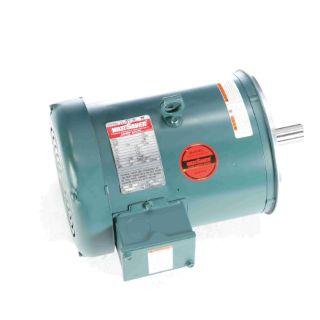

LEESON® Ultimate e® 132431.00 6-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 182TC Frame, 1175 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 132431.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$919.32

Qty:

Product Details

Brand Name

LEESON®

Type

6-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 6-Pole Continuous Duty, General Purpose AC Motors Application, 1.5 hp, 208 to 230/460 VAC, 5.6 to 5.2/2.6 A, 60 Hz Frequency, 3 ph ph, 1175 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 182TC Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 6.71 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 14.47 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Standard, epact and premium efficient ratings
Inverter rated
Class B insulation systems 42, 48 and 56 frames
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
WattSaver® e premium efficient motors

Specifications

Amperage Rating:	5.6 to 5.2/2.6 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	14.47 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182TC
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	1175 rpm
Temperature Rating:	40 deg C
Torque Rating:	6.71 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
