132440.00 MAR

Name: 132440.00 MAR
Brand: Leeson Electric
SKU: 132440.00 MAR
Price: 1,719.24 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

132440.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,719.24 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Alternate Supplier #

Grainger - 48ZG38

Description

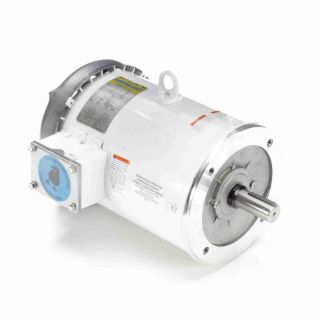

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, 5 hp, 230/460 VAC, 12.6/6.3 A, 60 Hz Frequency, 3 ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 184TC Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 14.96 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 15.47 in L Dimensions

Application

Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed

Features

USDA approved epoxy painted motors
NEMA motors
Double lip contact seals and V-ring seals used for shaft seals
USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions
Sealed bearings shut out contaminants that lead to bearing failure
Stainless steel output shaft seals protect against external contaminants
Cast, white epoxy conduit boxes house electrical wiring

Specifications

Amperage Rating:	12.6/6.3 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	15.47 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184TC
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	1760 rpm
Temperature Rating:	40 deg C
Torque Rating:	14.96 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
