132452.00 MAR

Name: 132452.00 MAR
Brand: Leeson Electric
SKU: 132452.00 MAR
Price: 2,641.84 USD
Availability: OutOfStock

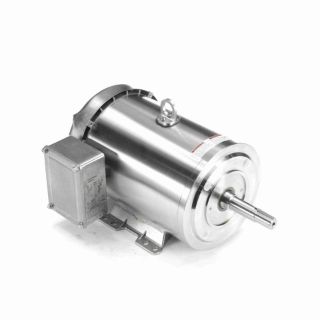

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

132452.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,641.84 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Alternate Supplier #

Grainger - 48ZF75

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, 5 hp, 230/460 VAC, 12.6/6.3 A, 60 Hz Frequency, 3 ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 184JM Frame, 0.88 in Dia x 4.21 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 14.96 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 17.27 in L x 10.3 in H Dimensions

Application

Pharmaceutical, Food Processing, Beverage Industries, Clean Room and Severe Chemical-Processing, Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

All exterior components are 300 series stainless steel
All sealing components are FKM for superior chemical resistance
Full fact nameplate is laser etched on the motor frame
End shields are O-ring sealed to the frame
Double lip shaft seals on both ends of TEFC motors
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
Exterior fastener use minimized reducing the number of entry points for moisture
Double sealed bearings are pre-lubricated with moisture resistant high temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion and ease to clean construction
New conduit box mounting system provides optimum sealing
LEESON's exclusive IRIS Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications

Specifications

Amperage Rating:	12.6/6.3 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	17.27 in L x 10.3 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184JM
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 4.21 in L
Speed:	1760 rpm
Temperature Rating:	40 deg C
Torque Rating:	14.96 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
