Actual Product May Vary From Image

132469.00 LEE

Name: 132469.00 LEE
Brand: Leeson Electric
SKU: 132469.00 LEE
Availability: OutOfStock

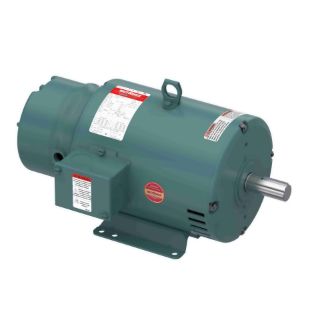

LEESON® 132469.00 4-Pole Squirrel Cage Induction Run Brake Motor, Drip-Proof Enclosure, 5 hp, 230/460 V, 60 Hz, 3 ph Phase, 184T Frame, 1755 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 132469.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Squirrel Cage Induction Run

Description

LEESON® Brake Motor, 4-Pole Squirrel Cage Induction Run, Application Type: Brake Motors, 5 hp, 230/460 V, 12.6/6.3 A, 60 Hz, 3 ph, 1755 rpm, 1 Speed, Drip-Proof, 184T Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 14.38 in L

Standards

CE Certified | CSA Certified | UL Recognized

Features

Fail safe positive stop and holding brakes
Load stops automatically when power is turned off
Manual brake release designs
Dual voltage brake coils

Specifications

Amperage Rating:	12.6/6.3 A
Application Type:	Brake Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	14.38 in L
Enclosure Type:	Drip-Proof
Frame:	184T
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1-1/8 in Dia x 2-3/4 in L
Speed:	1755 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 V
