Actual Product May Vary From Image

132476.00 LEE

Name: 132476.00 LEE
Brand: Leeson Electric
SKU: 132476.00 LEE
Availability: OutOfStock

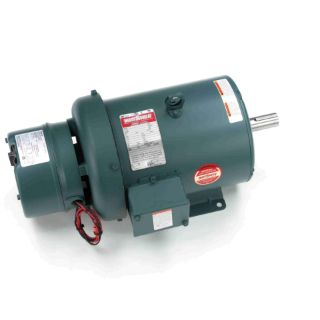

LEESON® 132476.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 184T Frame, 1760 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 132476.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Brake Motors Application, Washdown Duty Motors Special Features, 5 hp, 230/460 VAC, 12.6/6.3 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 184T Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 14.96 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 15.82 in L x 10.37 in H Dimensions

Application

Conveyors, Hoists, Packaging Equipment, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Washdown Duty Motors

Specifications

Amperage Rating:	12.6/6.3 A
Application Type:	Brake Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	15.82 in L x 10.37 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184T
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	1760 rpm
Temperature Rating:	40 deg C
Torque Rating:	14.96 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
