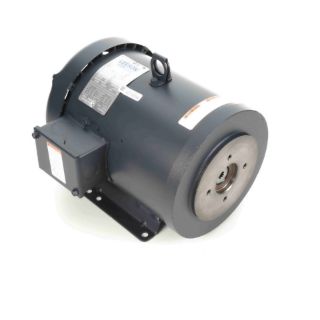

Actual Product May Vary From Image

132551.00 LEE

Name: 132551.00 LEE
Brand: Leeson Electric
SKU: 132551.00 LEE
Availability: OutOfStock

LEESON® 132551.00 4-Pole Squirrel Cage Inverter Rated Hydraulic Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208 to 230/460 V, 60/50 Hz, 3 ph Phase, 182TYZ Frame, 1770 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 132551.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Squirrel Cage Inverter Rated

Description

LEESON® Hydraulic Motor, 4-Pole Squirrel Cage Inverter Rated, Application Type: Hydraulic Pump Motors, 3 hp, 208 to 230/460 V, 8.4 to 7.8/3.9 A, 60/50 Hz, 3 ph, 1770 rpm, 1 Speed, Totally Enclosed Fan Cooled, 182TYZ Frame, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 12.04 in L

Standards

CE Certified | CSA Certified | UL Recognized

Features

Premium efficiency rating
Non-standard shaft extension
Round body

Specifications

Amperage Rating:	8.4 to 7.8/3.9 A
Application Type:	Hydraulic Pump Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	12.04 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182TYZ
Frequency Rating:	60/50 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Speed:	1770 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 V
