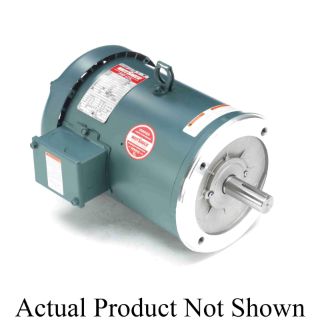

Actual Product May Vary From Image

132552.00 LEE

Name: 132552.00 LEE
Brand: Leeson Electric
SKU: 132552.00 LEE
Availability: OutOfStock

LEESON® 132552.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 182TZ Frame, 1770 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 132552.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Hydraulic Pump Motors Application, 3 hp, 208 to 230/460 VAC, 8.4 to 7.8/3.9 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 182TZ Frame, 1.19 in Dia Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 8.9 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 11.96 in L x 10.37 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

IRIS® inverter duty insulation system

Specifications

Amperage Rating:	8.4 to 7.8/3.9 A
Application Type:	Hydraulic Pump Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	11.96 in L x 10.37 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182TZ
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.19 in Dia
Speed:	1770 rpm
Temperature Rating:	40 deg C
Torque Rating:	8.9 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
