132636.00 LEE

Name: 132636.00 LEE
Brand: Leeson Electric
SKU: 132636.00 LEE
Availability: OutOfStock

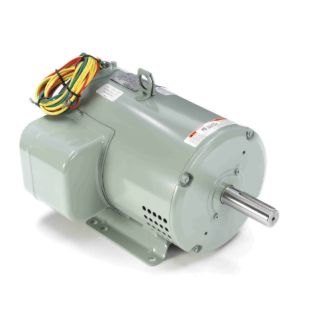

LEESON® 132636.00 2-Pole Permanent Split Capacitor Crop Dryer Motor, Open Air Over Enclosure, 5 hp, 230 V, 60 Hz, 1 ph Phase, 184TZ Frame, 3510 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 132636.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Permanent Split Capacitor

Description

LEESON® Crop Dryer Motor, 2-Pole Permanent Split Capacitor, 5 hp, 230 V, 21.3 A, 60 Hz, 1 ph, 3510 rpm, 1 Speed, Open Air Over, 184TZ Frame, 1.125 in Dia x 3.94 in L Shaft, Selective CCW, Service Factor: 1, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 16.82 in L x 10.32 in H

Standards

CE Certified | CSA Certified | UL Recognized

Features

Shaft is 3/4 in longer than NEMA standard
1/4-20 tapped and keyed shaft
Normally closed thermostats
Epoxy painted

Specifications

Amperage Rating:	21.3 A
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	16.82 in L x 10.32 in H
Enclosure Type:	Open Air Over
Frame:	184TZ
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1
Shaft Size:	1.125 in Dia x 3.94 in L
Speed:	3510 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230 V
