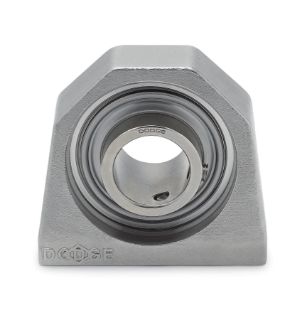

Actual Product May Vary From Image

137443 DOD

Name: 137443 DOD
Brand: Dodge
SKU: 137443 DOD
Price: 271.53 USD
Availability: OutOfStock

TB-SCFS-100-SHFS

Manufacturer: Dodge

Manufacturer part number: 137443

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$271.53

Qty:

Product Details

Ball Bearing Series:	205 Series
Base to Center Height:	1.4400
Base to Center Height (Unit):	INCH
Bearing Type:	Ball
Bolt Diameter:	0.3750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	2.0000
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	2.0000
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	1.3400
Bore Length (Unit):	INCH
Dynamic Load Capacity:	3146
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	No
Grease Name:	MobilGrease FM222
Housing Construction:	Solid
Housing Material:	Stainless Steel
Housing Type:	Tapped-Base Pillow Block
Insert Material:	Plated Stainless Steel
Lubrication:	Grease
Maximum Speed:	825
Maximum Speed (Unit):	RPM
Seal Type:	Triple-Lip Contact
Shaft Attachment:	Setscrew
Shaft Diameter:	1.0000
Shaft Diameter (Unit):	INCH
Standoff Housing:	No
Static Load Capacity:	1769
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	No
Suitable For Washdown:	Yes

Product Tags
