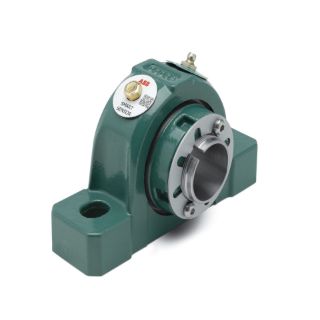

139828 DOD

Name: 139828 DOD
Brand: Dodge
SKU: 139828 DOD
Price: 1,699.95 USD
Availability: OutOfStock

P2B-IP-308L HT

Manufacturer: Dodge

Manufacturer part number: 139828

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,699.95

Qty:

Product Details

Base to Center Height:	3.7500
Base to Center Height (Unit):	INCH
Bearing Component:	Mounted Bearing
Bearing Type:	Spherical Roller
Bolt Diameter:	0.8750
Bolt Diameter (Unit):	INCH
Bolt to Bolt (Max):	10.6300
Bolt to Bolt (Max) (Unit):	INCH
Bolt to Bolt (Min):	9.3800
Bolt to Bolt (Min) (Unit):	INCH
Bore Length:	4.1700
Bore Length (Unit):	INCH
Dynamic Load Capacity:	65500
Dynamic Load Capacity (Unit):	POUND_FORCE
Expansion Capability:	Non-Expansion (Fixed)
Greasable:	Yes
Grease Name:	MobilGrease HTS #2
Housing Construction:	Solid
Housing Dimensional Standard:	S-2000
Housing Material:	Cast Iron
Housing Type:	Two-Bolt Pillow Block
Insert Material:	Steel
Lubrication:	Grease
Maximum Speed:	2600
Maximum Speed (Unit):	RPM
Seal Type:	Labyrinth
Sensor Ready:	Yes
Shaft Attachment:	Push-Pull Adapter
Shaft Diameter:	3.5000
Shaft Diameter (Unit):	INCH
Static Load Capacity:	81500
Static Load Capacity (Unit):	POUND_FORCE
Suitable for High Temperature:	Yes
Take-Up Frame Size:	HD-250,TS-400
