Actual Product May Vary From Image

13S50L DOD

Name: 13S50L DOD
Brand: Dodge
SKU: 13S50L DOD
Price: 628.71 USD
Availability: OutOfStock

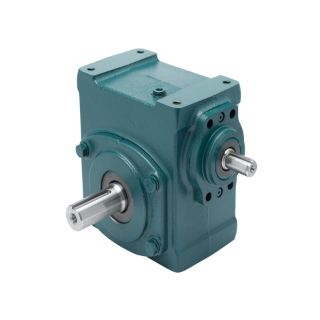

13S50L TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 13S50L

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$628.71

Qty:

Product Details

Base to Output Center Height:	1.7100
Base to Output Center Height (Unit):	INCH
Case Size:	13
Center Distance:	1.3300
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	4.0000
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	0.2700
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	0.1700
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Separate
Lubrication:	PAG, Standard Temperature
Mounting Bolt Pattern Length:	3.2500
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.0000
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	50.0000
Output Shaft:	Left (Solid A)
Output Style:	Left
Overhung Load:	650
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	313
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Input:	0.5000
Shaft Diameter Input (Unit):	INCH
Shaft Diameter Output:	0.6250
Shaft Diameter Output (Unit):	INCH
Shaft Length Input:	1.2200
Shaft Length Input (Unit):	INCH
Shaft Length Output:	1.9000
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	0.6100
Thermal Horsepower Rating (Unit):	HORSEPOWER
