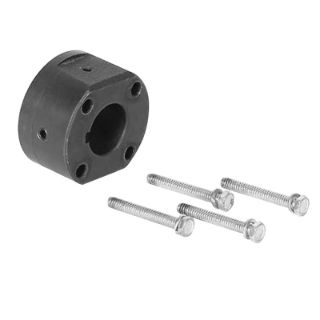

Actual Product May Vary From Image

13SCHS SPCR HUB 2-3/8 5/8 KW LOV

Name: 13SCHS SPCR HUB 2-3/8 5/8 KW LOV
Brand: Lovejoy
SKU: 13SCHS SPCR HUB 2-3/8 5/8 KW LOV
Availability: OutOfStock

Lovejoy® S-Flex Endurance™ 68514436757 Type SCHS Finished Bore Spacer Coupling Hub, 13SCHS Coupling, 2-3/8 in Dia Bore, 2.47 in L Through Bore, 6.13 in Dia Hub, Cast Iron

Manufacturer: Lovejoy

Manufacturer part number: 68514436757

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Lovejoy®

Type

Type SCHS Finished Bore

Description

Lovejoy® S-Flex Endurance™ Spacer Coupling Hub, Type SCHS Finished Bore, 13SCHS Coupling, 2-3/8 in Bore, 6.13 in Diameter Hub, 5/8 x 5/16 in Keyway, 2400 rpm Maximum, 2.47 in Length Through Bore, 3/4-10 Screw, Cast Iron

Standards

Features

Specifically designed for the pump industry, this coupling accommodates industry standard as well as special pump/motor separation
This shaft separation facilitates easy pump repair of pump packing, bearings and seals without disturbing pump or motor mounting and alignment

Specifications

Bore Diameter:	2-3/8 in
Country of Origin:	US
Coupling Size:	13SCHS
Hub Diameter:	6.13 in
Keyway Size:	5/8 x 5/16 in
Length Through Bore:	2.47 in
Material:	Cast Iron
Maximum Speed:	2400 rpm
Screw Size:	3/4-10
