Actual Product May Vary From Image

140-2 O/L MOR

Name: 140-2 O/L MOR
Brand: Regal Rexnord
SKU: 140-2 O/L MOR
Availability: OutOfStock

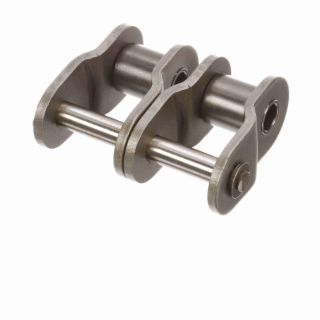

Morse® 322443 Standard Duty Offset Link With Cotter Pin, 140 Chain, 1-3/4 in Pitch, 4.041 in OAW, 1/2 in Dia Pin, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 322443

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Standard Duty

Description

Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.

Morse® Offset Link, Standard Duty, 140 Chain, 1-3/4 in Pitch, 4.041 in Overall Width, 1/2 in Pin Diameter, 1.634 in Link Plate Height, 0.219 in Link Plate Thickness, Steel

Application

Oil Industry Machinery, Paper Industry Machinery, Rubber, Plastic Industry Equipment and Textile Industries

Standards

ANSI B29.1

Features

2-strands

Specifications

Chain Size:	140
Country of Origin:	CN
Link Plate Height:	1.634 in
Link Plate Thickness:	0.219 in
Material:	Steel
Overall Width:	4.041 in
Pin Diameter:	1/2 in
Pitch:	1-3/4 in
