1400XXH200 GAT

Picture of 1400XXH200 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Rubber
Manufacturer part number:
1400XXH200
product.name:
1400XXH200 GAT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$720.43 / EA

Description

Brand Name

Gates®

Type

Double Extra Heavy

Description

The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.
Gates® PowerGrip® Timing Belt, Double Extra Heavy, Series: 9257, 112 Teeth, 1-1/4 in Pitch, 140 in Overall Length, 2 in Width, 9.43 in Minimum Pulley Dia, -30 to 180 deg F, Neoprene, Fiberglass Reinforced Material

Application

Office Machines, Machine Tools, Postage Equipment, Sewing Machines, Vending Machines, Agriculture, Outdoor Power Equipment, Food Processing, HVAC, Oil Fields, Wood, Paper, Sand and Gravel Applications

Standards

RMA Standard

Features

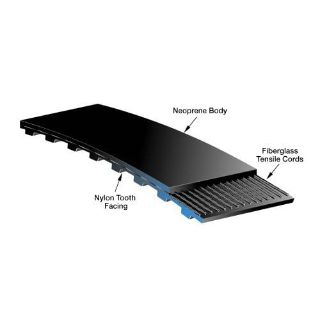

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
  • Neoprene body provides protection against grime, grease, oil and moisture
  • The trapezoidal tooth profile makes this belt well suited for use in positioning applications

Specifications

Country of Origin:US
Material:Neoprene
Minimum Pulley Diameter:9.43 in
Number of Teeth:112
Overall Length:140 in
Pitch:1-1/4 in
Reinforced Material:Fiberglass
Series:9257
Temperature Range:-30 to 180 deg F
Width:2 in

Products Specifications

Brand Name
Gates
Pitch
XXH

Customers who bought this item also bought

Picture of 5V1800 GAT

5V1800 GAT

MFG: Gates Rubber
MFG#:5V1800

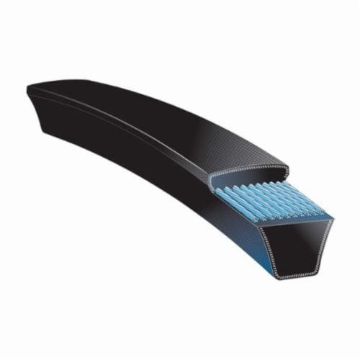

Info:Gates® Super HC® 5V1800 Banded Heavy Duty V-Belt, 5V Section, 5/8 in W Top, 180 in L Outside, 35/64 in THK, Chloroprene
