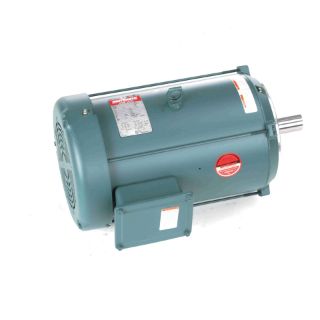

Actual Product May Vary From Image

140484.00 LEE

Name: 140484.00 LEE
Brand: Leeson Electric
SKU: 140484.00 LEE
Price: 1,585.45 USD
Availability: OutOfStock

LEESON® Ultimate e® 140484.00 4-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 215TC Frame, 1765 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 140484.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,585.45

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, 4-Pole Continuous-Duty, General Purpose AC Motors Application, 10 hp, 230/460 VAC, 26.8/13.4 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 215TC Frame, 1.38 in Dia x 3.38 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 29.75 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 19.71 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings and inverter rated
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
WattSaver® e premium efficient motors
Ultimate® premium efficient motors

Specifications

Amperage Rating:	26.8/13.4 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	19.71 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	215TC
Frequency Rating:	60 Hz
Horsepower:	10 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	1.38 in Dia x 3.38 in L
Speed:	1765 rpm
Temperature Rating:	40 deg C
Torque Rating:	29.75 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
