140821.00 MAR

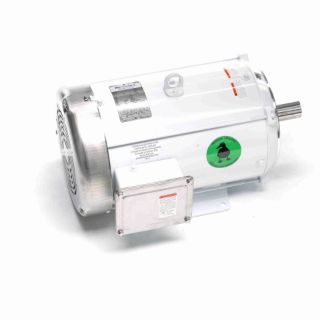

Picture of 140821.00 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Leeson Electric
Manufacturer part number:
140821.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,772.43 / EA

Description

Brand Name

LEESON®

Type

Type AC Continuous Duty

Alternate Supplier #

Grainger - 48ZG14

Description

LEESON® AC Motor, Type AC Continuous Duty, Special Features: C Face With Base, 91.7% Full Load Efficiency, 10 hp, 230/460 VAC, 26.6 A, 50/60 Hz, 1800 rpm, 1 Speed, TENV, 215TC Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class F, Stainless Steel, 18.71 in L

Standards

BISSC Approved | CE Marked | CSA File No. LR2025 | UL File No. E49747 | USDA Approved | UL Recognized

Features

C Face With Base, 91.7% Full Load Efficiency

Specifications

Amperage Rating:26.6 A
Bearing Type:Ball
Country of Origin:MX
Dimensions:18.71 in L
Enclosure Type:TENV
Frame:215TC
Frequency Rating:50/60 Hz
Horsepower:10 hp
Insulation Class:Class F
Material:Stainless Steel
Mounting Type:Rigid
Number of Speeds:1
Rotation:Reversible
Service Factor:1.25
Shaft Size:1-3/8 in Dia
Speed:1800 rpm
Temperature Rating:40 deg C
Voltage Rating:230/460 VAC
