140828.00 MAR

Name: 140828.00 MAR
Brand: Leeson Electric
SKU: 140828.00 MAR
Price: 3,748.82 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

140828.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$3,748.82 / EA

Description

Brand Name

LEESON®

Type

Type AC Continuous Duty

Alternate Supplier #

Grainger - 48ZH99

Description

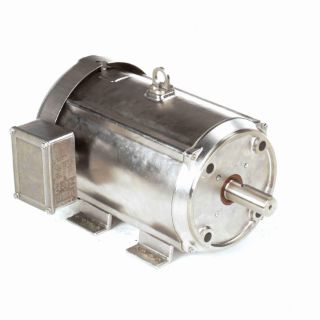

LEESON® AC Motor, Type AC Continuous Duty, C Face With Base, 91.7% Full Load Efficiency Special Features, 10 hp, 208 to 230/460 VAC, 26.8 A, 50/60 Hz Frequency, 1800 rpm Speed, 1 Speed, TENV Enclosure, 215TC Frame, 1-3/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Rigid Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 18.69 in L Dimensions

Application

For food processing and beverage industries, these motors are also ideal in clean room and severe chemical processing applications

Standards

CE Marked | CSA File No. LR2025, UL File No. E49747

Features

C Face With Base, 91.7% Full Load Efficiency

Specifications

Amperage Rating:	26.8 A
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	18.69 in L
Enclosure Type:	TENV
Frame:	215TC
Frequency Rating:	50/60 Hz
Horsepower:	10 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	1-3/8 in Dia
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
