140E20H MSG

Name: 140E20H MSG
Brand: Martin Sprocket & Gear
SKU: 140E20H MSG
Price: 595.60 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

140E20H

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$595.60 / EA

Description

Brand Name

Martin

Type

Type B Single Strand Welded Bushed

Description

Martin saber tooth sprockets have hardened teeth, which provide longer chain and sprocket life. The hardened teeth on the smaller sprocket of a roller chain drive are recommended if the drive ratio is four to one or greater if the smaller sprocket has 24 teeth or less and is running at a speed of over 600 rpm.

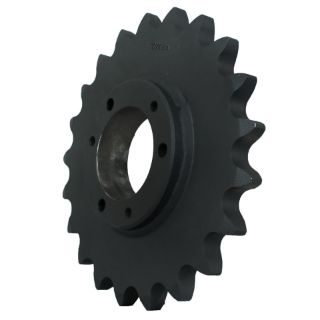

Martin Roller Chain Sprocket, Type B Single Strand Welded Bushed, 0.875 to 3.313 in Bore, 12.099 in OD, #140 Chain, 20 Teeth, 1-3/4 in Pitch, 11.1868 in Pitch Diameter, 6-1/4 in Diameter Hub, 1/2-13 UNC Screw, 1-5/8 in Length Through Bore, QD® E Bushing, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Interchangeable with other manufacturer's QD® bushings
Stocked heat treat
Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out

Specifications

Bore Diameter:	0.875 to 3.313 in
Bushing Type:	QD® E
Chain Size:	#140
Country of Origin:	US
Hub Diameter:	6-1/4 in
Length Through Bore:	1-5/8 in
Material:	Steel
Number of Teeth:	20
Outside Diameter:	12.099 in
Pitch:	1-3/4 in
Pitch Diameter:	11.1868 in
Screw Size:	1/2-13 UNC
