14120A 2 TKN

Name: 14120A 2 TKN
Brand: Timken
SKU: 14120A 2 TKN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

14120A-20024

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken®

Type

Single

Description

Timken® is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With the ability to support high radial and axial loads, high-performance Timken® double row tapered roller bearing components are engineered to provide the greatest durability in the most compact space.

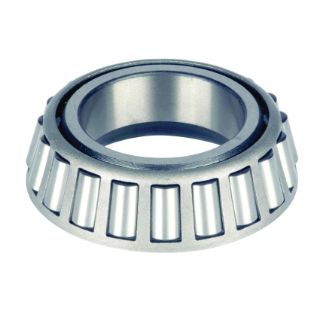

Timken®, 14120A-20024, Tapered Roller Bearing Cone, Single, Series: 14000, 1.2 in Bore, 1.052 in Cone Width, 0.14 in Maximum Shaft Fillet Radius, For Use With: Type TS Single Row Steel Tapered Roller Bearing, 12300 lb Dynamic/13900 lb Static Load, -65 to 250 deg F

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles, Trailer Wheels and General Purpose Applications

Standards

ABMA Class 2 | ANSI Standard

Features

Both rings should be replaced at the same time to maximize reliability and life

Specifications

Bore Diameter:	1.2 in
Cage Material:	Steel
Cone Width:	1.052 in
Load Capacity:	12300 lb Dynamic/13900 lb Static
Maximum Shaft Fillet Radius:	0.14 in
Series:	14000
Suitable For Use With:	Type TS Single Row Steel Tapered Roller Bearing
Temperature Rating:	-65 to 250 deg F
