14125A-3 TKN

Name: 14125A-3 TKN
Brand: Timken
SKU: 14125A-3 TKN
Availability: OutOfStock

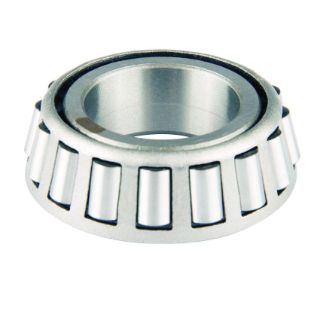

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

14125A-30000

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken®

Type

Single

Description

Timken® is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. High performance Timken® precision tapered roller bearing outer rings (cups) and inner rings (cones) are ideal for low runout and high speed designs. Precision classes 3 or C available.

Timken®, 14125A-30000, Precision Tapered Roller Bearing Cone, Single, Series: 14000, 1-1/4 in Bore, 0.771 in Cone Width, 0.14 in Maximum Shaft Fillet Radius, For Use With: Type TS Single Row Steel Tapered Roller Bearing, 12300 lb Dynamic/13900 lb Static Load, -65 to 250 deg F

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles, Trailer Wheels and General Purpose Applications

Standards

ABMA Class 3 | ANSI Standard

Features

Internal geometry provides increased stiffness and exceptional runout
Radial runout high point marked for accurate installation
Timken® outer (cup) and inner (cone) rings should be used in combination

Specifications

Bore Diameter:	1-1/4 in
Cage Material:	Steel
Cone Width:	0.771 in
Load Capacity:	12300 lb Dynamic/13900 lb Static
Maximum Shaft Fillet Radius:	0.14 in
Series:	14000
Suitable For Use With:	Type TS Single Row Steel Tapered Roller Bearing
Temperature Rating:	-65 to 250 deg F
