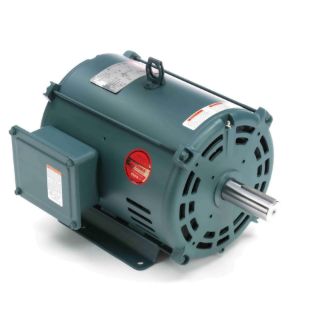

Actual Product May Vary From Image

141290.00 LEE

Name: 141290.00 LEE
Brand: Leeson Electric
SKU: 141290.00 LEE
Availability: OutOfStock

LEESON® 141290.00 4-Pole Squirrel Cage Induction Run Special Voltage Motor, Totally Enclosed Fan Cooled Enclosure, 10 hp, 200/400 V, 60 Hz, 3 ph Phase, 215T Frame, 1760 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 141290.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Squirrel Cage Induction Run

Description

LEESON® Special Voltage Motor, 4-Pole Squirrel Cage Induction Run, 10 hp, 200/400 V, 30.5/15.2 A, 60 Hz, 3 ph, 1760 rpm, 1 Speed, Totally Enclosed Fan Cooled, 215T Frame, 1.375 in Dia x 3.38 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 20.23 in L x 13.31 in W x 11 in H

Standards

CE Certified | CSA Certified | UL Recognized

Features

Premium efficiency rating
Inverter-rated
Class F insulation system 140 frame and higher
Continuous duty
Dynamically balanced rotors
Shielded ball bearings for direct coupled applications

Specifications

Amperage Rating:	30.5/15.2 A
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	20.23 in L x 13.31 in W x 11 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	215T
Frequency Rating:	60 Hz
Horsepower:	10 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.375 in Dia x 3.38 in L
Speed:	1760 rpm
Temperature Rating:	40 deg C
Voltage Rating:	200/400 V
