1447 WOO

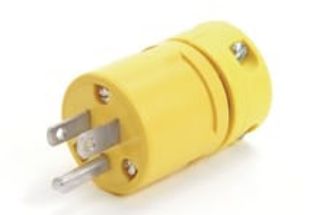

Picture of 1447 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
1447
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$21.24 / EA

Description

Brand Name

Woodhead®

Type

Industrial Duty

Description

Woodhead® Super-Safeway™ products are heavy duty industrial-wiring devices designed for abusive conditions and dependable performance for applications that demand the unmatched durability that rubber exclusively delivers. These rubberized industrial devices are the only wiring devices made of NEoTEX® Paracril OZO rubber, a rubber construction that yields ultimate performance within a wide temperature range, around many oils and chemicals and abrasive conditions.
Woodhead®, 1447, Plug, Industrial Duty, Series: 130141, 125 V, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15 NEMA Rating, Industrial Grade, 0.335 to 0.64 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Rubber, Yellow, 1.53 in Dia x 2.27 in L Dimensions

Standards

CSA LR6837 | RoHS Compliant | UL E10176 | PROP65: This product can expose you to Lead and its compounds, known to the State of California to cause Cancer, Developmental toxicity and Reproductive toxicity. For more information go to www.P65Warnings.ca.gov

Features

  • NEoTEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway™ offering
  • Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
  • Color coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
  • Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Two-piece cord-clamp strain relief includes tri-drive screws to firmly secure the cord
  • Color coded 1/4 terminal screws pre-set in open position, ready to wire
  • Stainless steel face screws
  • Nylon face insert
  • Brass wire saddle clamp
  • Steel, zinc plated cord clamp screws

Specifications

Amperage Rating:15 A
Color:Yellow
Cord Diameter:0.335 to 0.64 in
Country of Origin:MX
Dimensions:1.53 in Dia x 2.27 in L
Grade:Industrial
Horsepower:1/2 hp
Material:Rubber
NEMA Rating:NEMA 5-15
Number of Poles:2
Number of Wires:3
Series:130141
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 V
