1492JD3RB102 AB

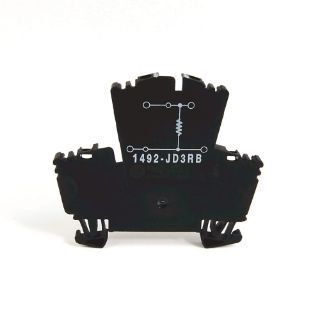

Picture of 1492JD3RB102 AB
Actual Product May Vary From Image

Product Details

Manufacturer:
Allen-Bradley
Manufacturer part number:
1492-JD3RB102
product.name:
1492JD3RB102 AB
CBT Inventory
8
Vendor Inventory
Please login to see accurate availability
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
8
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
$12.11 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Type

IEC Screw Resistor Term Blk

Description

Terminal Block, Screw Connection, Two Level with Selectable Resistor Value Between the Two Levels 1000 Ohm Resistance, 5.1 x 69 x 55.5mm (0.20 x 2.72 x 2.19 in), 1 Pole, Gray, Pkg. Qty. of 1, VOLTAGE RATING UR 300V AC/DC, CSA 300V AC/DC, IEC 400V

Features

crew Connection,Two LevelSelectable Resistor ValueBetween the Two Levels -1000Ohm Resistance,1 Pole,Gray

Specifications

Amperage Rating:URRENT Through Bus Bar UR -10A, CSA - 10A, IEC - 10A
Color:Gray (Standard)
Country of Origin:DE
Terminal Size:.1 x 69 x 55.5mm (0.20 x 2.72x 2.19 in)
Voltage Rating:R - 300V AC/DC, CSA - 300VAC/DC, IEC - 400V AC/DC
Wire Size:R - #30...12 AWG, CSA -#30...12 AWG, IEC - 4mm²

Resources

Spec Sheet
