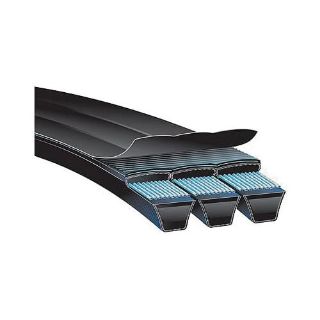

Picture of 14/B185 GAT
Actual Product May Vary From Image

14/B185 GAT

14/B185
Manufacturer: Gates
Manufacturer part number: 909318541
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Gates®

Type

Heavy Duty Banded

Alternate Supplier #

14/B185

Application

For drives where single belts vibrate, turn over or jump off the drive

Standards

ARPM/RMA IP-3-2/IP-3-3 Standard

Features

  • Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • The Flex-Weave® cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
  • Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
  • Gates® curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
  • The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive

Specifications

Material:EPDM
Number of Ribs:14
Outside Length:188 in
Reinforced Material:Polyester
Section Size:B
Series:9093
Temperature Range:-40 to 160 deg F
Thickness:7/16 in
Top Width:21/32 in
