14/B190 GAT

Name: 14/B190 GAT
Brand: Gates Corporation
SKU: 14/B190 GAT
Availability: OutOfStock

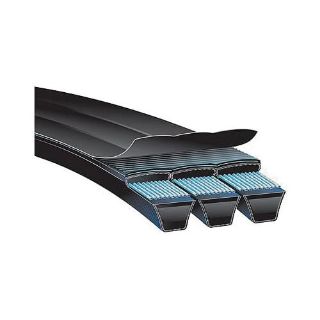

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

14/B190

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Gates®

Type

Heavy Duty Banded

Description

The PowerBand® construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove.

Gates® Hi-Power® II PowerBand® V-Belt, Heavy Duty Banded, Series: 9093, B Section, 21/32 in Top Width, 193 in Outside Length, 7/16 in Thickness, 14 Ribs, -40 to 160 deg F, EPDM, Polyester Reinforced

Application

For drives where single belts vibrate, turn over or jump off the drive

Standards

ARPM/RMA IP-3-2/IP-3-3 Standard

Features

Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
The Flex-Weave® cover is a patented fabric construction for longer cover life, providing extended protection to the belt core from oil, dirt and heat
Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
Gates® curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive

Specifications

Material:	EPDM
Number of Ribs:	14
Outside Length:	193 in
Reinforced Material:	Polyester
Section Size:	B
Series:	9093
Temperature Range:	-40 to 160 deg F
Thickness:	7/16 in
Top Width:	21/32 in
