14MGT-1750-68 GAT

Name: 14MGT-1750-68 GAT
Brand: Gates Corporation
SKU: 14MGT-1750-68 GAT
Price: 1,091.24 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

14MGT-1750-68

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1,091.24 / EA

Description

Brand Name

Gates®

Description

Give yourself a competitive advantage by designing in the Gates® Poly Chain® GT® Carbon™ drive system instead of roller chain in your next power transmission application. The patented use of Carbon™ Fiber as the tensile cord in this belt provides increased horsepower rating for greater power density and compactness and increased flexibility, allowing the use of backside idlers. When combined with Gates® Poly Chain® GT®2 sprockets, you have a lightweight, long-lasting, maintenance-free system that's more than a match for roller chain.

Gates® Poly Chain® GT® Carbon™ Synchronous Belt, Series: 9274, 125 Teeth, 14 mm Pitch, 1750 mm Overall Length, 68 mm Width, 139.81 mm Minimum Pulley Dia, -65 to 185 deg F, Curvilinear Tooth Profile, Polyurethane, Carbon Reinforced Material

Application

For all industrial markets, especially suited to replace roller chain drives, narrow width minimizes reducer overhung loads and left-justified hubs on Poly Chain® GT®2 sprockets accommodate short shaft lengths

Standards

RMA Standard

Features

Durable polyurethane construction resists chemicals, oil, pollutants and abrasion
Nylon tooth facing reduces friction and eliminates the need for lubrication
Maintenance-free, clean solution for roller chain drive conversion
Significantly reduces maintenance cost
Equivalent capacity to roller chain drives in the same width
Easy rust-free wash-down with Gates® stainless steel hardware
Fast drive conversion payback
Quieter than roller chain drives
New construction provides up to 55% more low-speed capacity than the original PCGT construction and 30% more than PCGT2

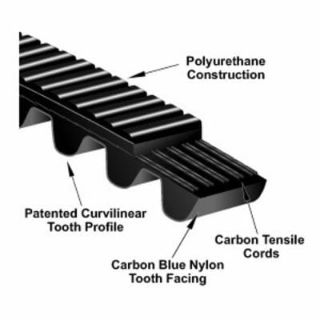

Gates® curvilinear tooth profile provides high shear strength, noise reduction and improved load carrying capacity
Robust carbon tensile cord combines minimal stretch with extraordinary strength and load carrying capacity, while absorbing shock and surge loads

Specifications

Country of Origin:	US
Material:	Polyurethane
Minimum Pulley Diameter:	139.81 mm
Number of Teeth:	125
Overall Length:	1750 mm
Pitch:	14 mm
Reinforced Material:	Carbon
Series:	9274
Temperature Range:	-65 to 185 deg F
Tooth Profile:	Curvilinear
Width:	68 mm

Resources

Video
