14MX-37S-68 GAT

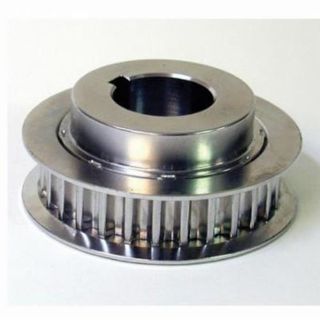

Picture of 14MX-37S-68 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
14MX-37S-68
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$618.99 / EA

Description

Brand Name

Gates®

Description

Genuine, strong, durable sprockets designed for use with high power density Gates® Poly Chain® Carbon™ Volt®, Poly Chain® GT®2, and Poly Chain® GT Carbon™ belts.
Gates® Poly Chain® GT®2 Synchronous Sprocket, Series: 7719, Taper-Lock® Bore, 7/8 to 3-1/4 in Bore Dia, 6.38 in Outside Dia, 6.492 in, 37 Grooves, 14 mm Pitch, 3.33 in Face Width, 7.17 in Flange Dia, 5.27 in Hub Dia, 3020 Bushing, For Use With: 68 mm W Poly Chain® Belt, Cast Iron

Features

  • Keep overhung load below manufacturers recommendation
  • Full split in bushing allows easy installation and removal
  • Precise sprocket design produces positive, press fit to shaft
  • Re-work services have turnaround time

Specifications

Bore Diameter:7/8 to 3-1/4 in
Bore Type:Taper-Lock®
Bushing Type:3020
Country of Origin:US
Face Width:3.33 in
Flange Diameter:7.17 in
Hub Diameter:5.27 in
Material:Cast Iron
Number of Grooves:37
Outside Diameter:6.38 in
Pitch:14 mm
Pitch Diameter:6.492 in
Series:7719
Suitable For Use With:68 mm W Poly Chain® Belt
