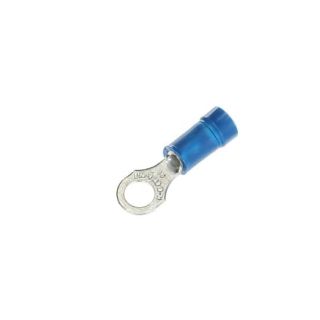

Actual Product May Vary From Image

14RB-10X TB

Name: 14RB-10X TB
Brand: Thomas & Betts
SKU: 14RB-10X TB
Price: 1.66 USD
Availability: OutOfStock

EXP INS VINYL RING TERM, 18-14, #10

Manufacturer: Thomas & Betts

Manufacturer part number: 14RB-10X

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.66

Qty:

Product Details

Brand Name

Sta-Kon

Type

Ring Terminal

Description

Expanded Insulated Vinyl Ring Terminal For Wire Range 18-14 Stud Size #10, Blue

Features

Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won´t fall free even if the mounting screw loosens.

Specifications

Color:	Blue
Country of Origin:	US
Finish:	Electro -Tin Plated
Flammability Rating:	UL 94 V-0
Insulation Type:	Expanded Insulated Vinyl
Material:	Copper
Maximum Insulation:	.200 IN
Stock Thickness:	.03
Stud Size:	#10
Temperature Rating:	105?C
Voltage Rating:	600V
Wire Size:	18-14

Resources

Spec Sheet
