14RB-8F TB

Name: 14RB-8F TB
Brand: Thomas & Betts
SKU: 14RB-8F TB
Price: 1.45 USD
Availability: InStock

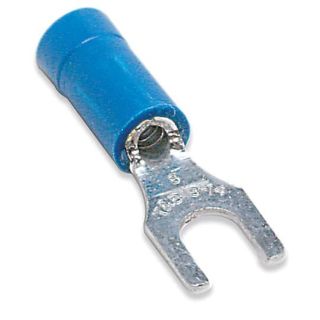

INS VINYL FORK TERM 18-14 No8 BLUE

Manufacturer: Thomas & Betts

Manufacturer part number: 14RB-8F

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	100
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$1.45

Qty:

Product Details

Type

Vinyl Insulated Fork Terminal

Description

Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Standards

UL E9809

Features

These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wires flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded

Specifications

Color:	Blue
Country of Origin:	US
Harmonized Code:	8536904000
Material:	Copper
Voltage Rating:	600 V
Wire Size:	18-14 AWG

Resources

Spec Sheet
