14W33H HWD

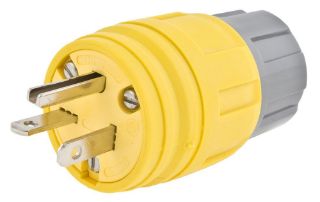

Wiring Device-Kellems 14W33H 1-Phase Watertight Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Manufacturer part number: 14W33H
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Watertight

Alternate Supplier #

Grainger - 5RVU4

Description

Wiring Device-Kellems Straight Blade Plug, 1-Phase Watertight, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20P, Industrial Grade, IP65/IP66/IP67 Enclosure, -40 to 60 deg C, Threaded Terminal, Composite, Yellow, 1.63 in Dia x 2.68 in L Dimensions

Application

For extra heavy duty industries

Standards

CSA Certified | UL Listed

Features

  • Stainless steel assembly screws
  • Clear, deep pocket wire entry
  • Thermoplastic elastomer sealing cap with triple seal
  • 2500 VAC dielectric voltage
  • Rated for current interruption per UL498
  • 30 deg C temperature rise maximum per UL498 at rated current
  • 18 to 12 AWG terminal accommodation
  • NEMA 4/4X/12/6/6P moisture resistance, 2000 W
  • Cord mounted, elastogrip

Specifications

Amperage Rating:20 A
Color:Yellow
Country of Origin:US
Dimensions:1.63 in Dia x 2.68 in L
Enclosure:IP65/IP66/IP67
Grade:Industrial
Material:Composite
NEMA Rating:NEMA 5-20P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Threaded
Voltage Rating:125 VAC
