14W34 WOO

Name: 14W34 WOO
Brand: Molex (Woodhead)
SKU: 14W34 WOO
Price: 39.55 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex (Woodhead)

Manufacturer part number:

14W34

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

$39.55 / EA

Description

Brand Name

Woodhead®

Description

Woodhead® Watertite® wet location wiring devices are rated for high pressure hose down application up to 1000 psi, the benchmark for the industry. The only devices made of NEo-TEX® paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include - unique multiple ring seals that lock snugly protecting against moisture and contaminants, sturdy compression-type cord grips that provide high pull-out strength and a protective closure cap that seals the connector when it is not in use. Woodhead® Watertite® products are time tested devices that professionals demand.

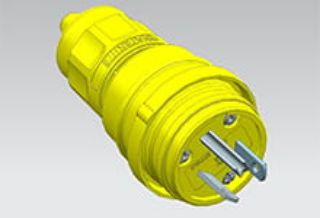

Woodhead® Watertite® Extreme Male Plug, Series: 130146, 277 VAC, 15 A, 2 Pole, 3 Wires, NEMA 7-15, IP67/IP69K Enclosure, 1/8 to 3/16 in Cord Dia, -40 to 75 deg C, Screw/Wire Terminal, Silicone, Yellow

Application

Breweries, Dairies, Food and Beverage, Wastewater Treatment and Wet Location Applications

Standards

CSA Certified | UL Listed

Features

Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure washdown up to 1000 psi
Color coded 1/4 in terminal screws pre-set in open position ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screwdrivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
3-piece strain relief seals cord without damaging the cord
F2 body 1/2 in cable grip
Nickel plated brass plug blades and connector contacts
NEoTEX® paracril OZO rubber outer housing and grommet
Stainless steel face screws
Nylon face insert
Brass wire saddle clamp
Lexan receptacle cover plate and closure caps
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	1/8 to 3/16 in
Country of Origin:	MX
Enclosure:	IP67/IP69K
Material:	Silicone
NEMA Rating:	NEMA 7-15
Number of Poles:	2
Number of Wires:	3
Series:	130146
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw/Wire
Voltage Rating:	277 VAC
