150 1/1 D,E ST HUB

Name: 150 1/1 D,E ST HUB
Brand: Hub City
SKU: 150 1/1 D,E ST HUB
Price: 1,217.25 USD
Availability: OutOfStock

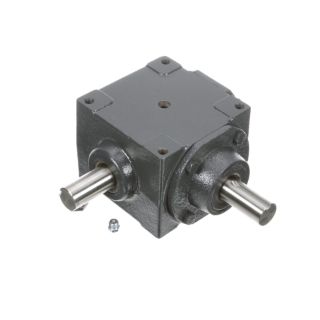

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-00803

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,217.25 / EA

Description

Brand Name

Hub City®

Type

Right Angle Straight Single Reduction Style D E

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style D E, Series: 150, 1:1 Gear Ratio, 12 hp, Shaft Input, Shaft Output, 1 in Dia x 2 in L Input, 1 in Dia Output, 1150 rpm Output Maximum Speed, 1150 rpm Input Maximum Speed, 660 in-lb, 5-23/32 in Centre Distance, 1/4 x 1/8 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 8-9/32 in D x 4-1/8 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	5-23/32 in
Country of Origin:	US
Dimensions:	8-9/32 in D x 4-1/8 in H
Efficiency:	97.5 %
Gear Ratio:	1:1
Horsepower:	12 hp
Input Maximum Speed:	1150 rpm
Input Size:	1 in Dia x 2 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	1150 rpm
Output Size:	1 in Dia
Output Type:	Shaft
Series:	150
Torque Rating:	660 in-lb
