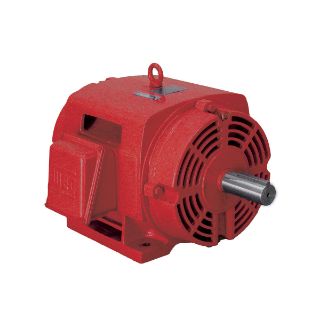

15036OP3EFP405TS WEG

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal, with W22 as an option for more demanding environments (50 Hz only). These motors are specifically designed to provide maximum ventilation and cool operation.

WEG AC Motor, Continuous-Duty, Fire Pump Motors Application, 150 hp, 208/230/460 VAC, 354 to 336/168 A, 60 Hz Frequency, 3 ph ph, 3555 rpm Speed, Open Drip-Proof Enclosure, 404/5TS Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 219 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 31.141 in L Dimensions
