15036OT3G405JP WEG

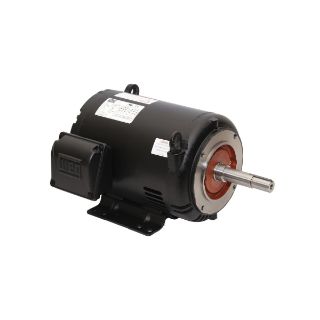

Picture of 15036OT3G405JP WEG
Actual Product May Vary From Image

Product Details

Manufacturer:
WEG
Manufacturer part number:
15036OT3G405JP
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

WEG

Type

Closed Couple Pump

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.
WEG AC Motor, Closed Couple Pump, Jet Pump (JM/JP) Motors Application, 150 hp, 460 VAC, 162 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Open Drip-Proof Enclosure, 404/5JP Frame, 1.15 Service Factor, Footed Mounting, Insulation Class: Class F, 1000:1 Variable Torque Speed, 35.263 in L Dimensions

Features

  • Stainless steel nameplate laser etched with high contrast background
  • Regreasable bearings

Specifications

Amperage Rating:162 A
Application Type:Jet Pump (JM/JP) Motors
Dimensions:35.263 in L
Enclosure Type:Open Drip-Proof
Frame:404/5JP
Frequency Rating:60 Hz
Horsepower:150 hp
Insulation Class:Class F
Mounting Type:Footed
Phase:3
Service Factor:1.15
Speed:3600 rpm
Variable Torque Speed Range:1000:1
Voltage Rating:460 VAC

Products Specifications

Brand Name
WEG
Horsepower
150 HP
Type
JP – ODP – Three-Phase
