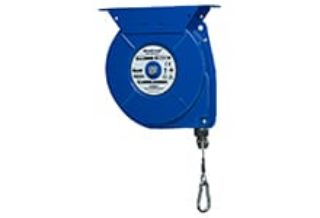

Actual Product May Vary From Image

1515TLRSC WOO

Name: 1515TLRSC WOO
Brand: Molex/Woodhead
SKU: 1515TLRSC WOO
Availability: OutOfStock

Aero-Motive® 1515TLRSC 130176 Constant Retraction Standard Duty Torque Reel With Ratchet Lock, Safety Cable, 0 to 15 lb Load, 15 ft L Cable, 15 ft Travel

Manufacturer: Molex/Woodhead

Manufacturer part number: 1515TLRSC

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Aero-Motive®

Type

Constant Retraction Standard Duty

Description

Torque reels are reeling devices primarily designed for suspending pushbutton pendent stations weighing up to 15 lb. A lock mechanism permits the operator to stop a load at a desired height, while a slight pull on the cable releases the lock.

Aero-Motive® Torque Reel, Constant Retraction Standard Duty, Series: 130176, 0 to 15 lb, 15 ft Cable Length, 15 ft Travel, Steel Cable, Steel Housing, Rigid Mount

Features

Easy load height adjustment, a slight pull on the cable releases the lock
Features an off switch to disengage locking mechanism when constant tension is required
Easy external tension adjustment
Adjustable cable stop, snap hook, multi-directional guide, forged clevis top mount and 15 feet of cable
3/32 in Dia stranded galvanized steel cable

Specifications

Cable Length:	15 ft
Cable Material:	Steel
Country of Origin:	US
Housing Material:	Steel
Load Capacity:	0 to 15 lb
Mounting Type:	Rigid
Series:	130176
Travel:	15 ft
